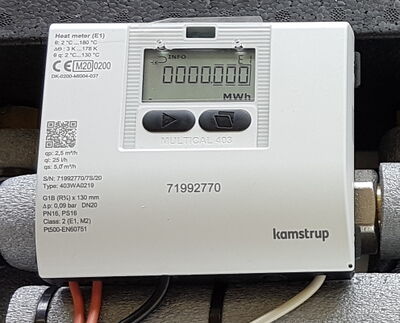

MULTICAL® 403 is a static heat meter, cooling meter or combined heat/cooling meter based on the ultrasonic principle. The meter is intended for energy measurement in almost all types of thermal installations where water is used as the energy-conveying medium.
MULTICAL® 403 consists of a calculator, a flow sensor and two temperature sensors. MULTICAL® 403 has been developed for measurement of energy consumption in flats, single-family and multi-family houses, housing associations, blocks of flats and small industry. The meter is simple to install, and it has a temperature range of 2...180 °C and a meter programme with nominal flow from qp 0.6m³/h to 15m³/h.
Features
- Programmable data logger with AMR
- Configurable M-Bus modules with logger reading
- On-site configuration via front keys
- Highly flexible modular design
- M-Bus output as standard
- Pulse Inputs and Outputs
- Real-time clock backup
- Mains or Up to 16-year battery backup
- IP68 flow sensor
- Very wide dynamic range
- Conforms to MID, Class 2
