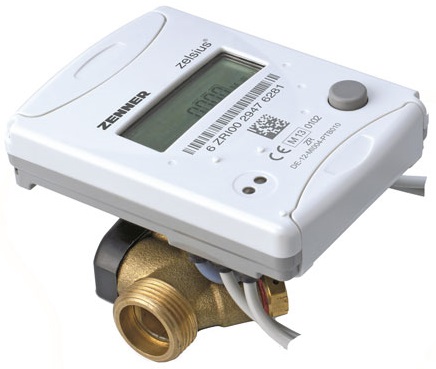

Zenner C5 Heat Meter

Features and Performance Criteria

Features and Performance Criteria

• Available as heat, cooling or combined heat/cooling meters
• Low design height wireless MBus (optional)
• 3 pulse inputs or outputs (optional)
• Any installation position (even overhead)
• Stores 24 months readings
• 11-year battery service life
• Precise, long-term stable, wear-free
• Very wide dynamic range
• Conforms to MID, Class 2

Part Codes

ZE101C5 15MM C5 IUF Ultrasonic Heat/Cooling Meter. 0.6m3/h, 110mm body length ZE102C5 15MM C5 IUF Ultrasonic Heat/Cooling Meter. 1.5m3/h, 110mm body length ZE103C5 20MM C5 IUF Ultrasonic Heat/Cooling Meter. 2.5m3/h, 130mm body length ZEC5MBO C5 MBus Output ZEC5WMB C5 Wireless MBus Output ZEC5PUO C5 Pulse/Radio Output ZE200PO Pocket or Ball Valve 5.2mm, 50mm, 34.5mm ZE015CO 15mm Couplings G3/4 R1/2 (pair) ZE020CO 20mm Couplings G1B R3/4 (pair)

Further Documentation

C5 IUF Conformity Cert MID C5 IUF Ultrasonic Heat Meter Data Sheet C5 Installation Guide
