Substation Panel

Pre-commissioned control panel for twin plate sub-station control.

GSM modem and SIM with fixed IP address
Touch screen display
Open Protocol
Node-RED controls software

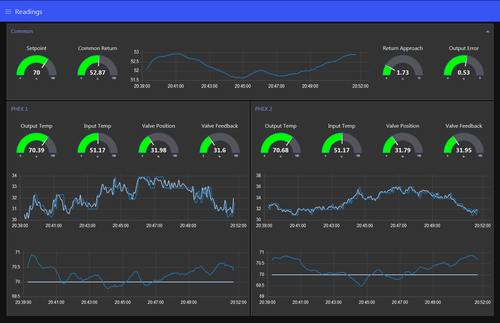

Browser based interface with dashboard and graphing
Metal enclosure with ventilation fan
Redundant control circuts
MQTT, VPN, and https services
Full controls logic with auto duty-assist-backup operation and adaptive PID control
Pre-assembled ready for site connection to
- 2x Primary control valves (with feedback)
- 2x Circuit isolation valves
- 6x Temperature sensors
- 2x Pressure sensors
- 1x DP sensor
- 1x Primary bypass valve

Controls Protocol
